ATG system

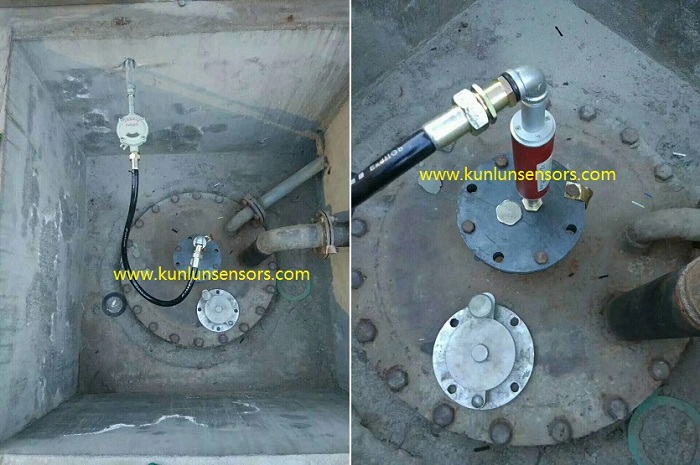

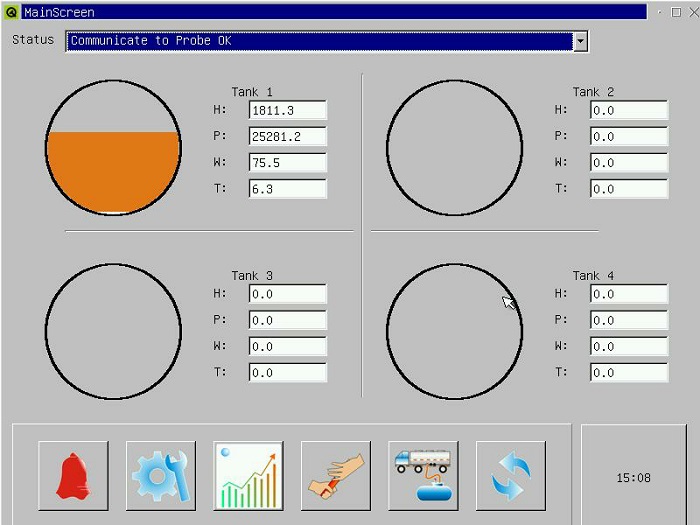

KunLun ATG system are mainly used in underground oil tanks of petrol station, this system consists of KunLun console and KunLun magnetostrictive probe. Magnetostrictive probe is installed in oil tanks, real time measuring oil liquid level, volume, water level and temperature inside tanks, at the same time transmit all the datas to KunLun smart console which install in office wall in real time.
one console could connect six magnetostrictive level probes.
Magnetostrictive level probe Technical Parameters:
Measuring range:0.3~4m（can customize according to user’s request）
Safety Barrier input voltage: DC12V/40mA
Communication protocol:RS485 Baud rate:2400BPS
Transfer distance: 1200m
Measuring accuracy:±1mm
Repetition: 0.3mm
Resolution: 0.1mm
Temperature measuring number: 5
Temperature measuring range:-40°C ~ 125°C
Temperature Precision:±0.5°C
Temperature Resolution:0.0625°C
Protective Grade/Explosion-proof label: IP67/Exia II CT6
Nominal working pressure: 0~0.6MPa 0~1.6MPa 0~2.5MPa
Working medium density:0.4~1.3g/cm3
The material of the probe and the Electronic Storehouse: 316L stainless steel probe
The probe is used for exactly measuring tanks and it had been applied in the fields of gas station, chemical industry, foodstuff and pharmacy.
Applied liquid products
Gasoline
Diesel
Kerosene
Ethanol Gasoline
Bio Diesel
Water
Other approved light oil products
Data measured
Product level
Water level
Temperature
Product inventory
Empty capacity (Order capacity)
