Tank Level Sensor For Petrol Station

Smart Console

Flexible Probe

Tank Level Sensor adopts latest magnetostrictive technology, together with digital communication techniques has enhanced the quality of tank gauging methods, achieving a stable and accurate measuring process. Kunlun's precision rating of 0.5 mm is the state of the art among similar products.

Whenever you need accurate inventory, delivery & sales data, all are here!

Automatic Measurement : oil level; water level; temperature; volume;

Scientific Management : Shifting of duty; Oil reload record; report generation and print

Security Surveillance : high or low oil level（empty tank problems will not happen）; water level; *temperature monitoring and warning system.

Environmental Monitoring : Oil leak detecting and warning system

Data Sharing : Automatic data transfer with other information system, to expend management function solutions

Tank Gauge System Solution Solution = Probe + Console

Console with touch screen

Function:

1. Accurately monitoring the delivery,sales and inventory of oil in the tank

2. User defined Alarm and system auto alarm

3. Can set the parameter directly through Console

4. It can be connect to the PC , can monitoring the delivery,sales and inventory of oil in the tank on the PC by PC Remote, print on PC

5. All the data and report can be exported, and can be save in PC files

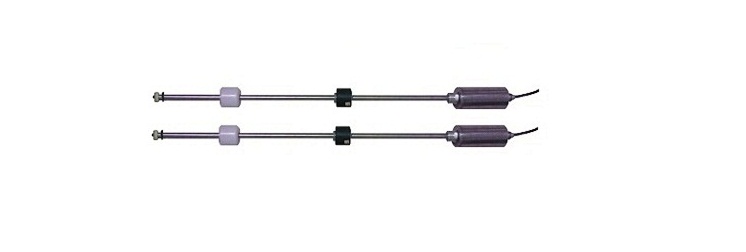

Automatic Tank Gauges (ATGs) KunLun Magnetostrictive Probe is Designed based on magnetostrictive principle.

Power supply :	DC12V, 50mA
Precision :	±0.5mm
Resolution of product level :	0.01mm
Resolution of temperature :	0.0625℃
Resolution of water level :	0.01mm
Temperature range :	-40℃ ~ 280℃;
Points of temperature measured :	5
Maximum communication :	500m
Communication :	RS-485
Mark of explosion proof :	ExiaⅡCT6
Definition of power cable :	Brown – POWER DC12V Blue – RS-485A Purple – RS-485B Black – GND
Medium applicable :	Gasoline, kerosene, diesel, light oil, heavy oil ,alcohol mixture

Applied liquid products
1. Gasoline
2. Diesel
3. Kerosene
4. Ethanol Gasoline
5. Bio Diesel
6. Water
7. Other approved light oil products

Data measured
1. Product level
2. Water level
3. Temperature
4. Product inventory
5. Empty capacity (Order capacity)

Features
1. Transfer probe data to console in real time, including product level, water level,tempature
2. 5 points temperature sensors offer precision measurement as the basis of temperature compensation and leak detection
3. Digital signal transmit have remarkable highlights than traditional analog signals,especially on high anti-interruption ability, enhance long distance communication as 500m, and higher security.
4. Leak detection ability support 0.38Liter/Hour, and 0.76Liter/Hour, static and dynamic leak detection connects with console. This programmable Leak Detection can be set detect by daily,weekly, monthly or annually.
