Chemical Flow Meter - Industrial Water Flow Meter - Electromagnetic Flow Meter

Chemical Flow Meters Liquid, Industrial Water Flow Meter,Sea/Salt Water Flow Meter, Low Cost Water Flow Meter

Chemical Flow Meters video:

Specification

Converter	Compact	Remote	Compact with Battery Power
Accuracy	0.5% of Rate	0.5% of Rate	1.0% of Rate
Conductivity	>5μs/cm	>5μs/cm	>5μs/cm
Min. Velocity	0.3 m/s	0.3 m/s	0.3 m/s
Max. Velocity	10 m/s	10 m/s	10 m/s
Turndown Ration	Standard 1:20; Others on request
Output	4-20mA/Pulse	4-20mA/Pulse	Consult the factory
Power Supply	(1) 110-240Vac (2) 18-36 Vdc	(1) 110-240Vac (2) 18-36 Vdc	Lithium Battery
Communication	Optional: RS485; MODBUS; HART; Profibus-DP
Ex-Proof Level	Exd[ia]qIICT5
Protection Level	IP65	Converter: IP65 Sensor: IP65; (IP68 on request)	IP65
Diameter	DN10-DN1200
Installation	1. Flange (Standard: ISO; Optional: ANSI, DIN, JIS); 2. Thread (Standard: G; Optional: NPT); 3. Wafer
Pressure Rating	Standard: 1.6Mpa; Others on request
Fluid Temperature	Standard: PTFE: <120°C (customized PTF)E: <120°C) ; Rubber: <60°C
Ambient Temperature	-30°C-60°C	-30°C-60°C	-30°C-60°C

Advantages
- Accuracy:± 0.5of Rate / ±0.2% of Rate
- Diameter range: DN4-DN3000
- Fluid Temp.: - 20...+160°C
- Housing Material: Carbone steel /SS304 / SS316
- Electrode material: SS316l /Titanium/ HC/Tantalum..
- Connection: wafer/ Sanitary / Flange

Selling Points
Ø OEM & ODM services
Ø Enough stock with short delivery time
Ø Quality product with competitive price
Ø Fast response services
Ø Guarantee time is 24 months.
Ø Certificate of CE & ISO 9001: 2008

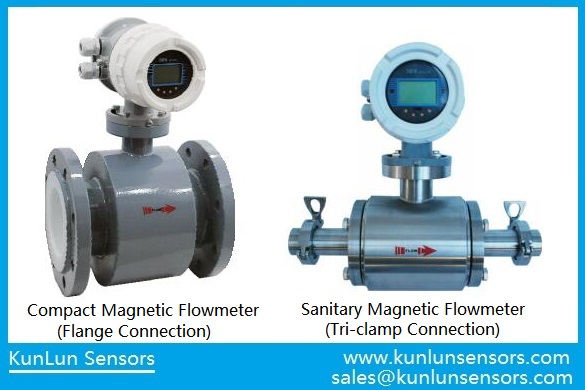

KunLun electromagnetic flow meters are intended for fluid measurement in most industries including
water, wastewater, food and beverage, pharmaceutical and chemical.
……….
There are two basic components of electromagnetic flow meter: 1)The Detector, which includes the flow
tube, isolating liner and measuring electrodes, and 2) The Converter, which is the electronic device
responsible for signal processing, flow calculation, display and output signals.

The materials of construction of the wetted parts (liner and electrodes) should be appropriate for the
specifications on the intended type of service. Review of the compatibilities consistent with the
specifications is recommended.

All electromagnetic flow meters are factory tested and calibrated. A calibration certificate is included in the
shipment of each meter.
